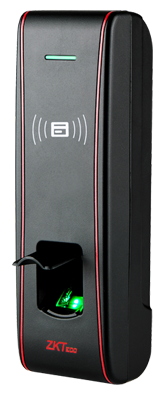

Access Control System F16

Description

F16 is a fingerprint access control terminal with an integrated proximity reader (EM). It is IP65 rated which enables it to be resistant from water, dust and other outside damages. It can be installed easily on your network having both Ethernet and RS485 serial ports. Weigand-OUT port allows connection of reader to ZK or any 3rd party access control panels panel. Using Weigand-In port, you can connect to any card readers for authentication at both entrance and exit.

The PULL firmware and ZKAccess3.5 are the standard configurations which make F16 more versatile and powerful. Users can be registered on the device by the Management Card or through connecting with ZKAccess3.5 software by TCP/IP.

Specifications

Fingerprint Sensor : ZK Optical Sensor

Algorithm Version : ZKFinger V10.0

Communication : TCP/IP, RS485

Fingerprint Capacity : 3,000 Fingerprints

Card Capacity : 30,000 Cards

Log Capacity : 100,000 Transactions

RF Card : EM(standard)/Mifare(optional)

Authentication : Finger/Card

Wiegand Signal : Wiegand input&output

Ingress Protection Rate : IP65

Operating Voltage : 12VDC 3A

Operating Temperature : 0~ 45 °C (32°F ~ 113°F)

Dimension : 62.5mm×185mm×41.5mm (W×H×D)

Features

Rugged Structure for Outdoor Installation and Extra Durability

IP65 rated waterproof and dustproof structure

Slim and Elegant Design

One of the world’s smallest fingerprint terminals

Sleek and slim design for narrow spaces

Fast and Accurate Fingerprint Algorithm

1 touch a-seond user recognition

Store 3,000 fingerprint templates, 30,000 cards and 100,000 transactions

Easy Installation and Connectivity

Wiegand input & output

Network interface by TCP/IP or RS485

Full Access Control Features

Anti-passback

Access control interface for 3rd party electric lock, door sensor, exit button, alarm

For Software Developers

Free PULL SDK and development tools are available for developers/partners

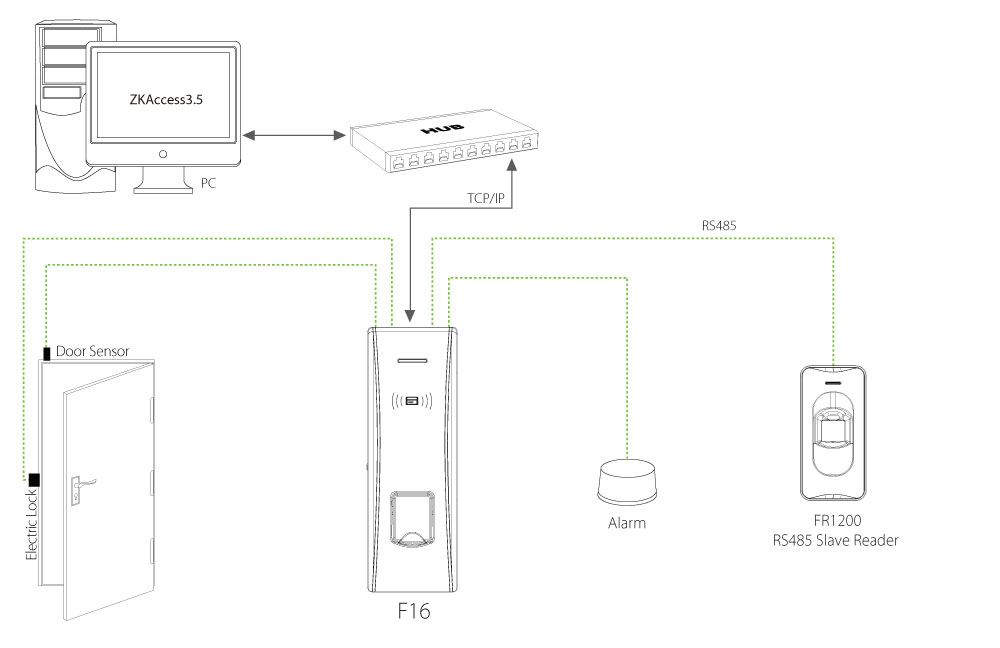

Configuration
