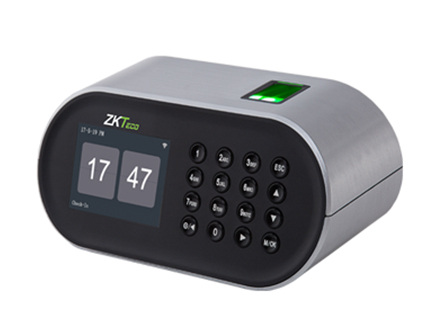

Time Attendance System D1
D1 Tabletop Terminal is specially designed for table or counter use (80-140cm). With fingerprint sensor placed on top of terminal, it enables all-directional fingerprint reading for the convenience of attendance. BioID high sensitivity fingerprint sensor provides faster and more accurate fingerprint verification. With built-in detachable battery lasting for up to 8 hours, and micro-USB power supply for power bank (minimum 2A) connection, there are no more worries for lacking power sockets supply.
Specifications
- Hardware
- LCD : 2.8” Color LCD
- Sound : 24-bit
- Operating Temp : 0 °C- 45 °C
- Operating Humidity : 20% ~ 80%
- Power : DC 5V 2A
- Battery : 4,000 mAh
- Dimensions(W x H x D mm) : 180.0 x 84.5 x 81
- Function
- Standard : Automatic Status Switch, Self-Service Query, SSR DST, T9 Input, 9 Digit User ID, Scheduled Bell
- Capacity
- Max User(1:N) : 1,000
- Max Fingerprint (1:N) : 1,000
- Max Record : 50,000
- Interface
- Wi-Fi : WLAN / Hot Spot
- USB : USB 2.0 (Host)
- Compatibility
- ZKTime.net 3.0
- ZKTime 5.0
- ZKAccess 3.5
- TA Assistant (Optional)
Features
Wi-Fi communication
Build in battery up to 8 hour standby
Build in time attendance report
Mobile APP control and download report
USB Microport for DC power bank charge available
